On Encoding Molecular Structures
Bin Shao
President of Zhongguancun Institute of Artificial Intelligence

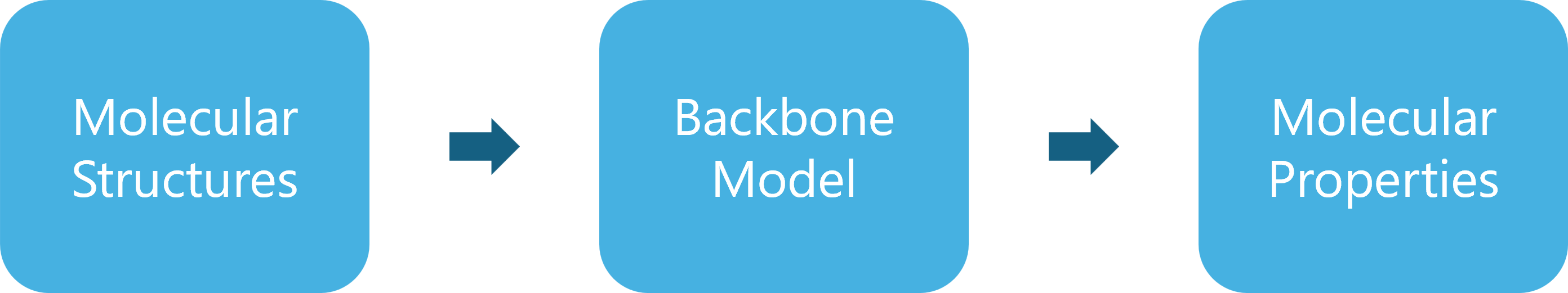

Molecular Representations

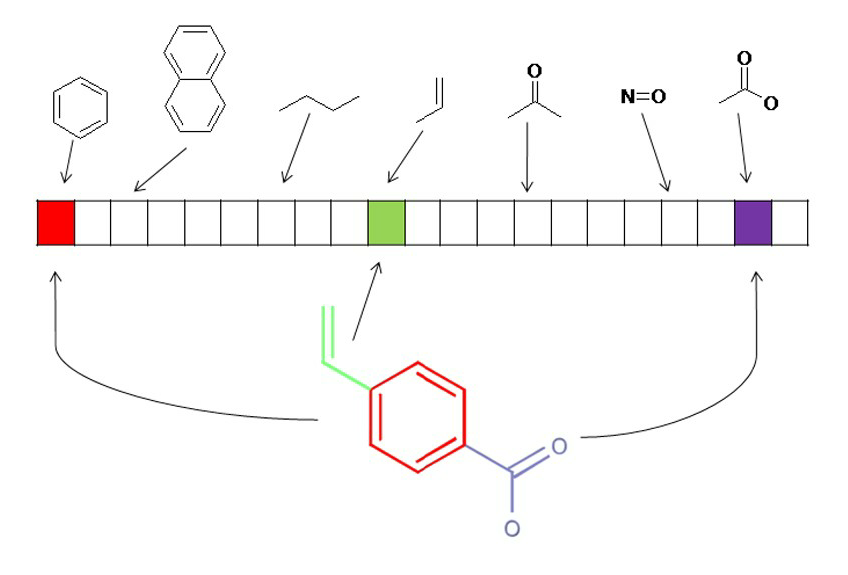

Extracted Features
(Molecular fingerprints &
descriptors)
Very lossy!

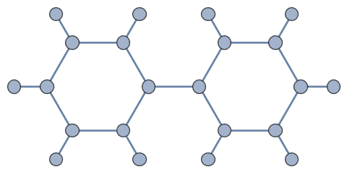

Bond-based Representation
(SMILES & Graph)
C1=CC=C(C=C1)C2=CC=CC=C2
Somewhat lossy
Geometric Representation
(3D structure & Point Cloud)
A little lossy

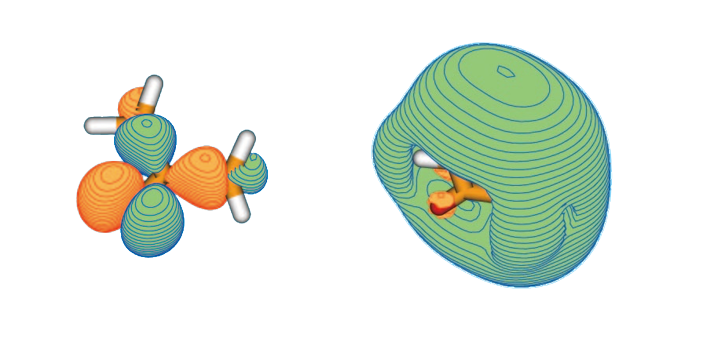

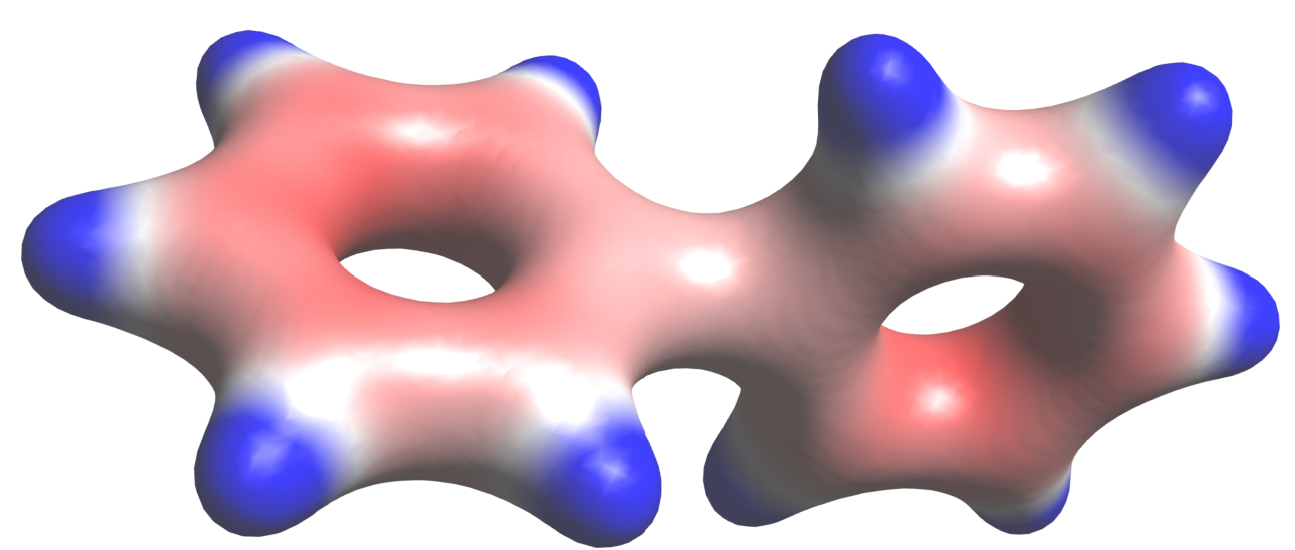

Electronic Structures
A property graph with distances between neighboring nodes cannot recover the molecular geometry.

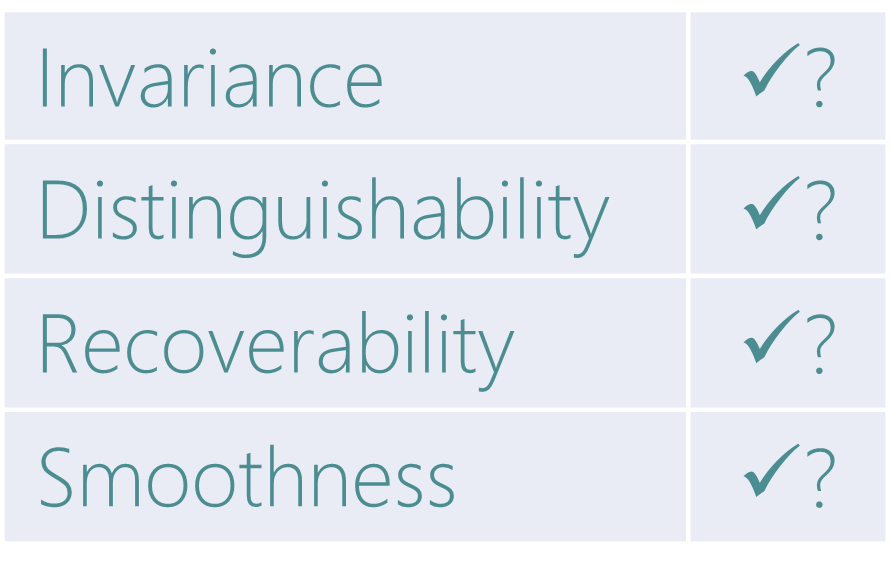

What makes a good representation for molecules
- Invariance: the encoding should be invariant under distance-preserving translations and rotations.
- Distinguishability: the encodings for two distinguishable structures should be distinguishable.
- Recoverability: the molecular structures should be recovered based on its encoding.
- Smoothness: the encoding should not change dramatically as the structure changes a bit.

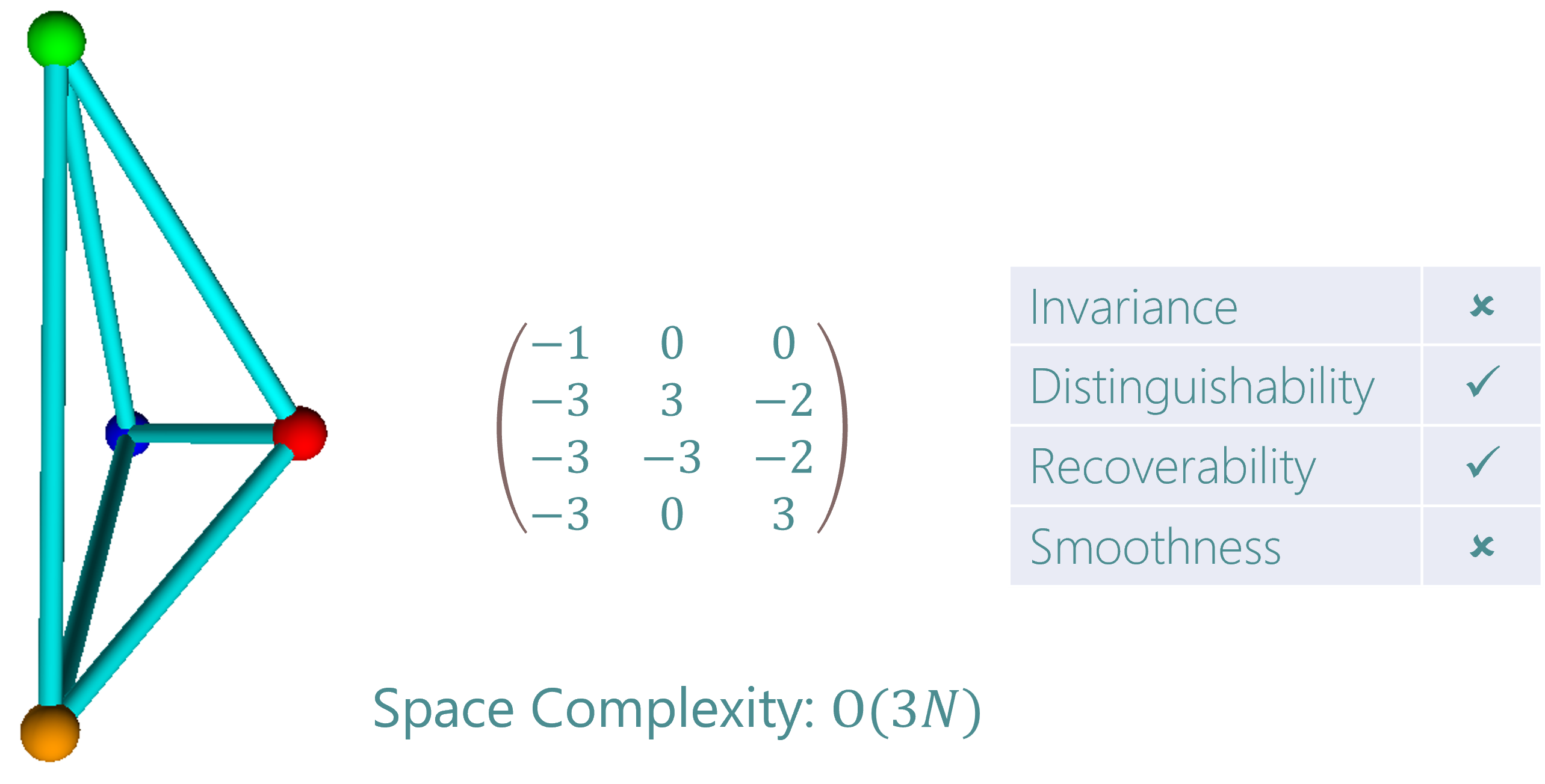

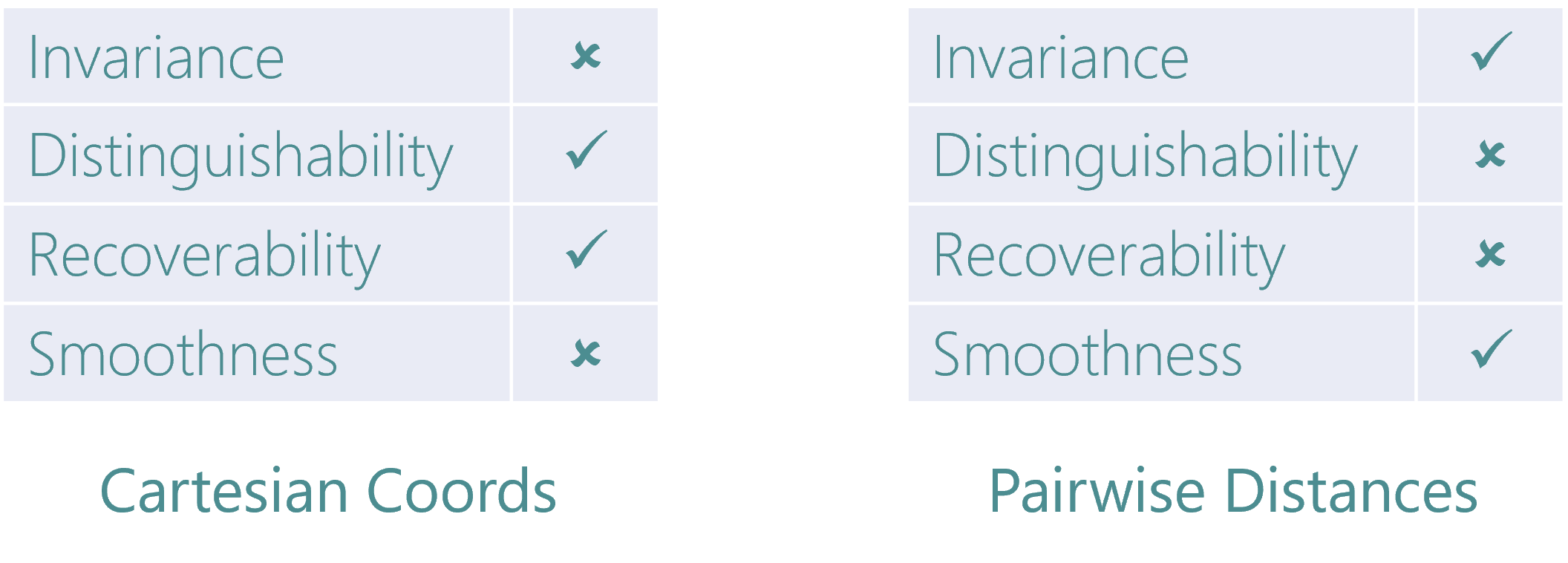

Cartesian Coordinates

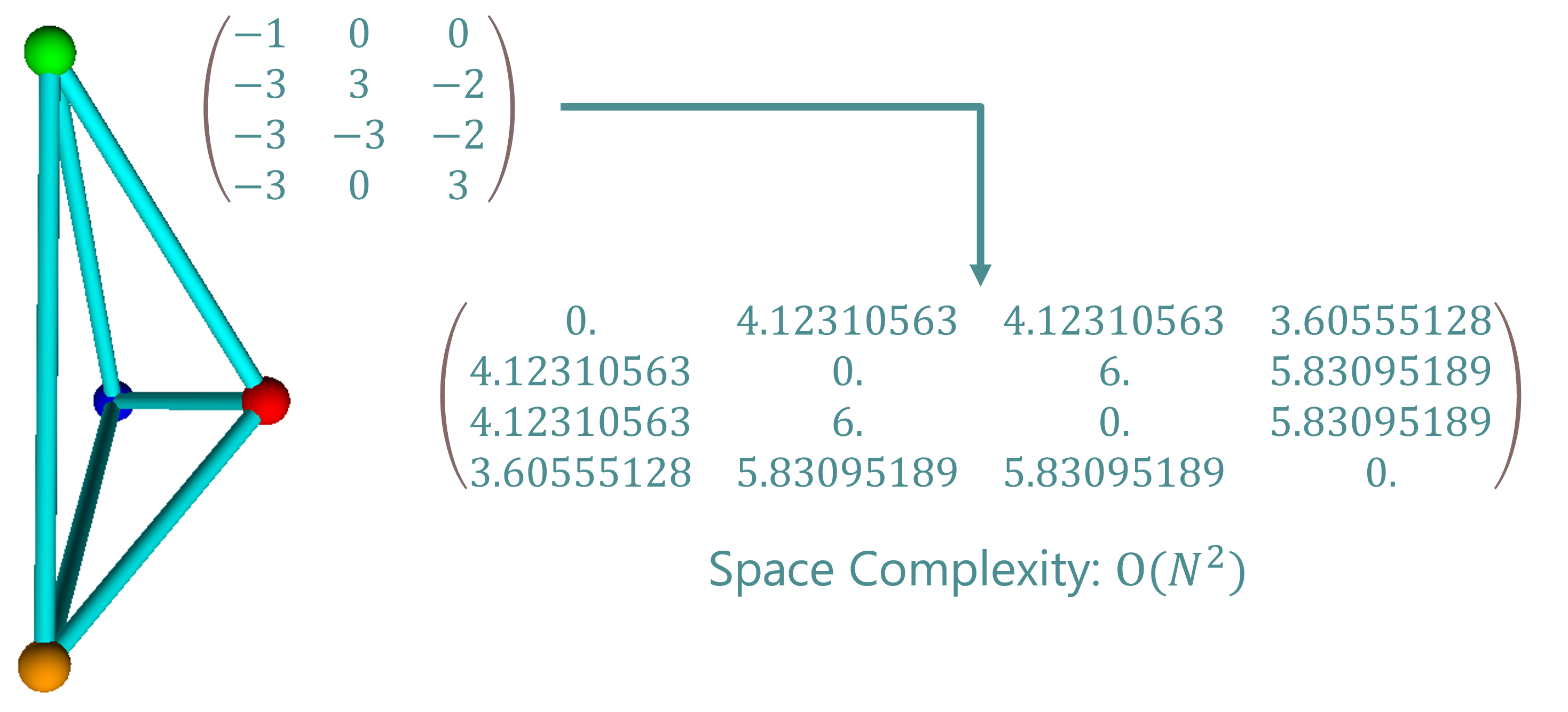

Pairwise Distances
Do we differ from our images in the mirror?

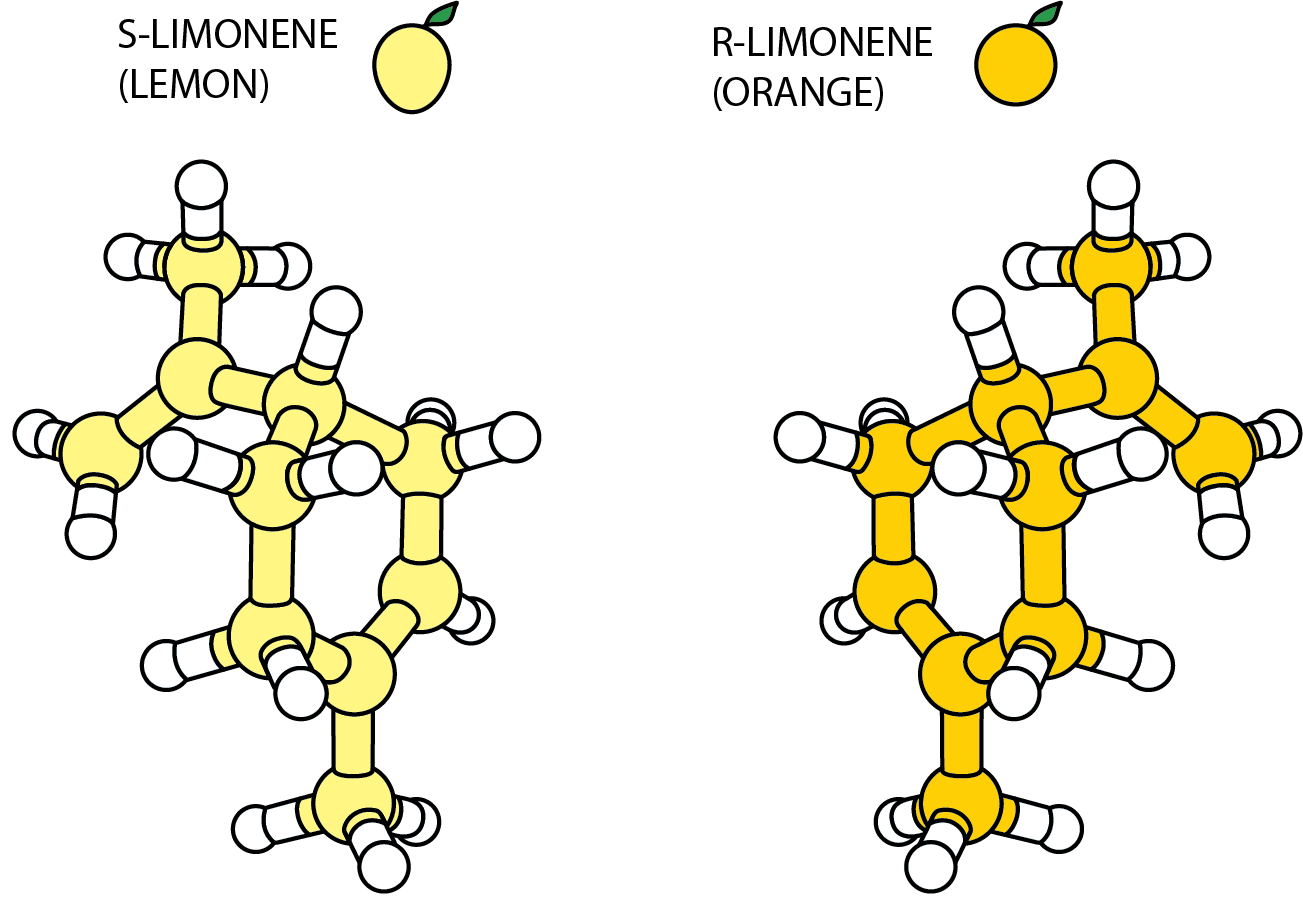

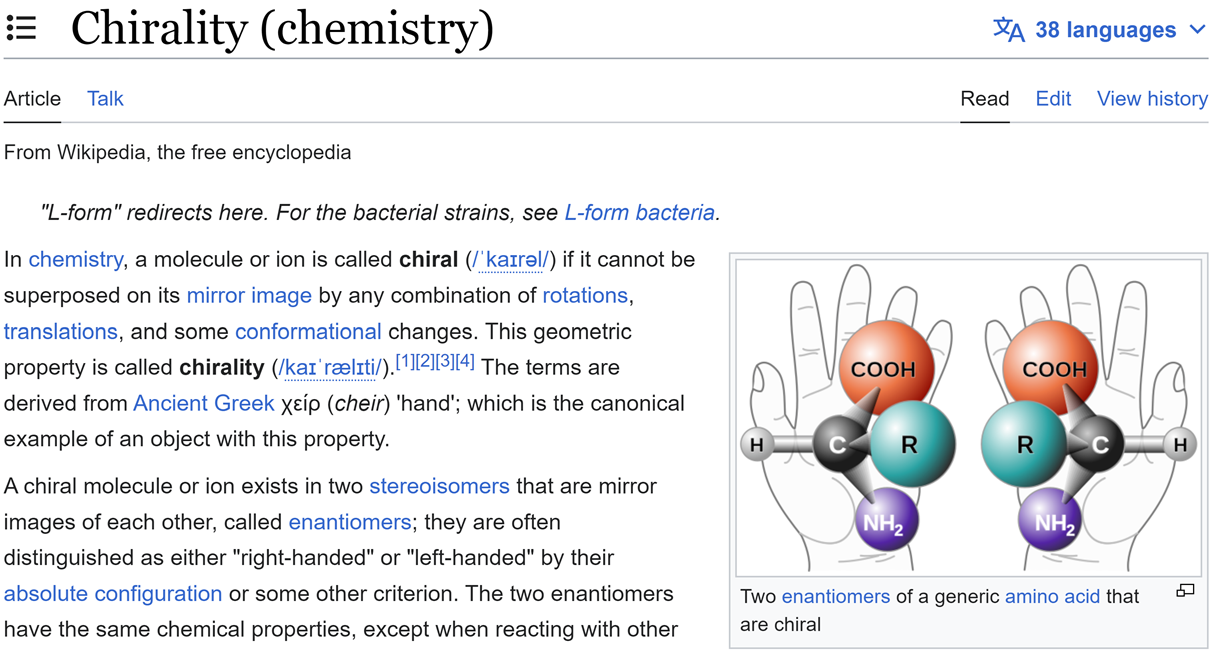

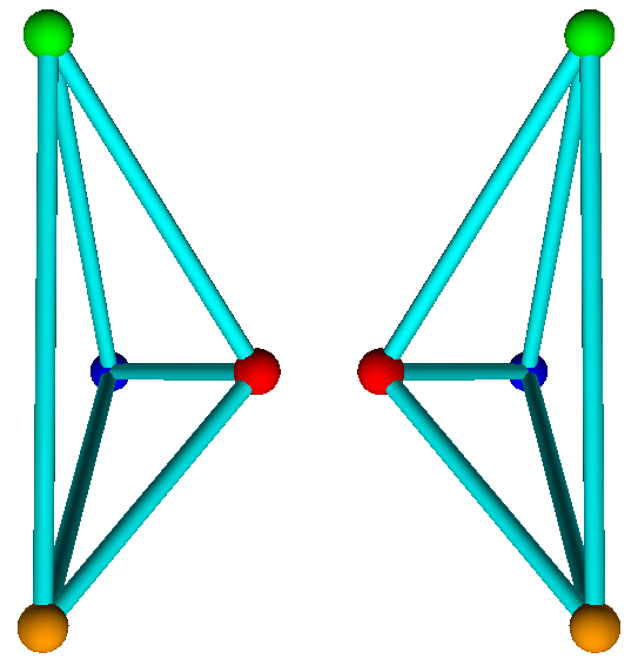

Are two mirror molecules (chiral molecules) different?
Well, it really depends.
If we only concern ourselves with intrinsic properties (energies, interatomic forces, ...) of a molecule without considering the connections with other molecules, chiral molecules are essentially the same molecule.
But,
Mirror molecules function differently in our 3D world
Distinctiveness of Handedness Collapses in 4D Space

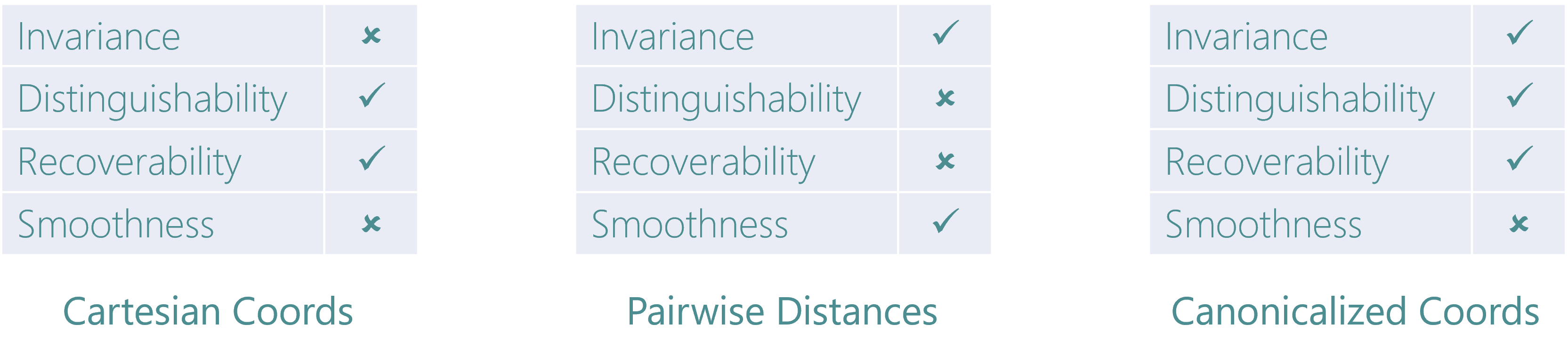

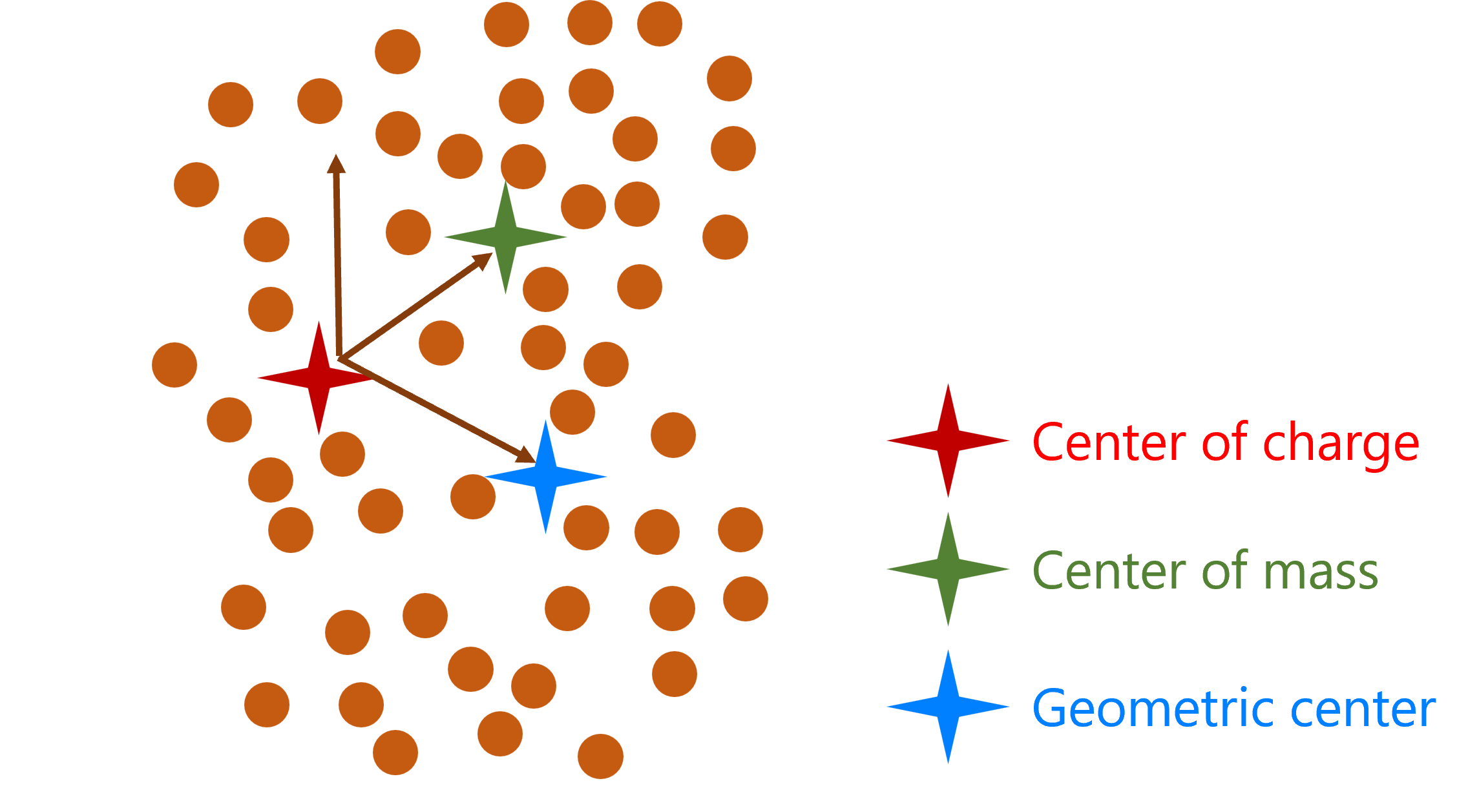

Canonicalized Coordinate System
Mirror Molecules in the Canonicalized Coordinate System

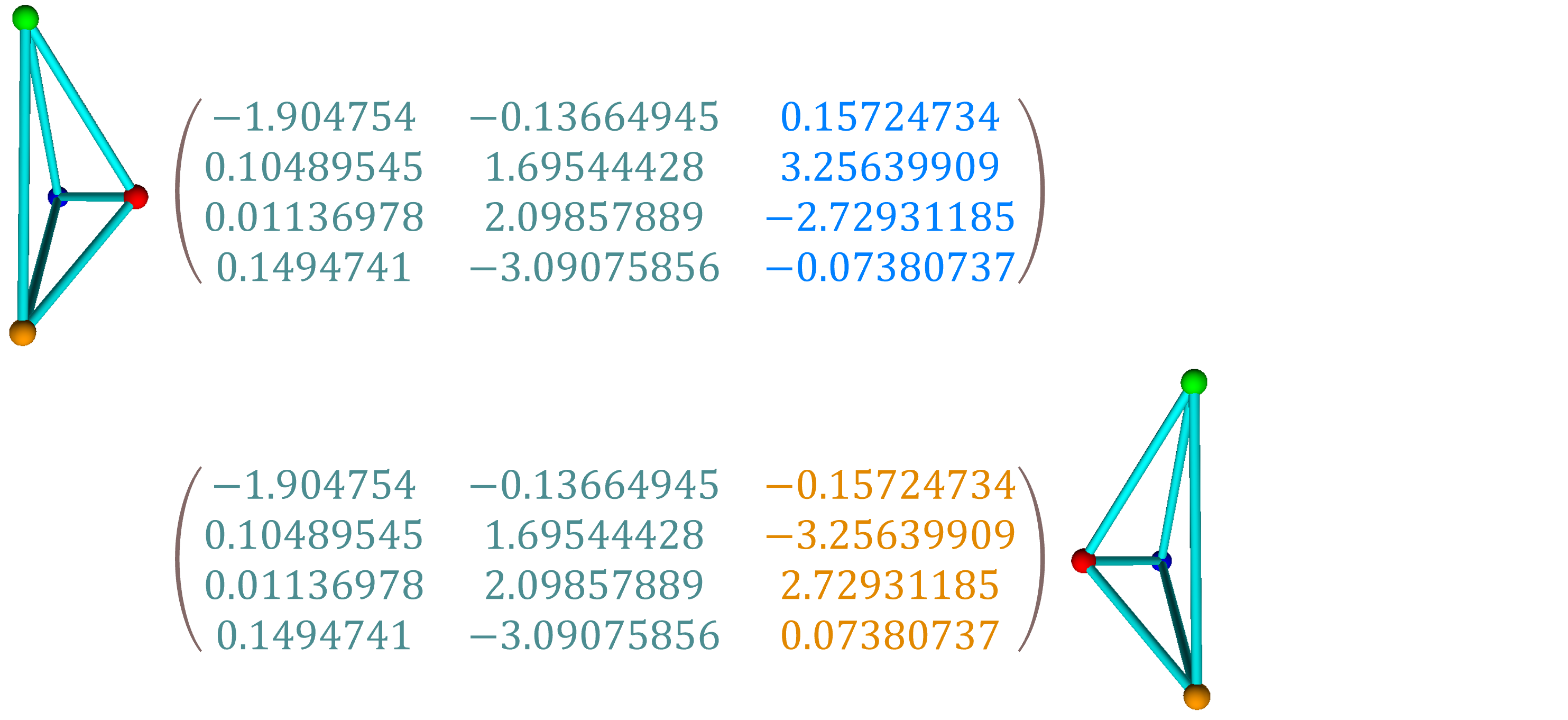

Canonicalized Coordinates for the Mirror Molecules

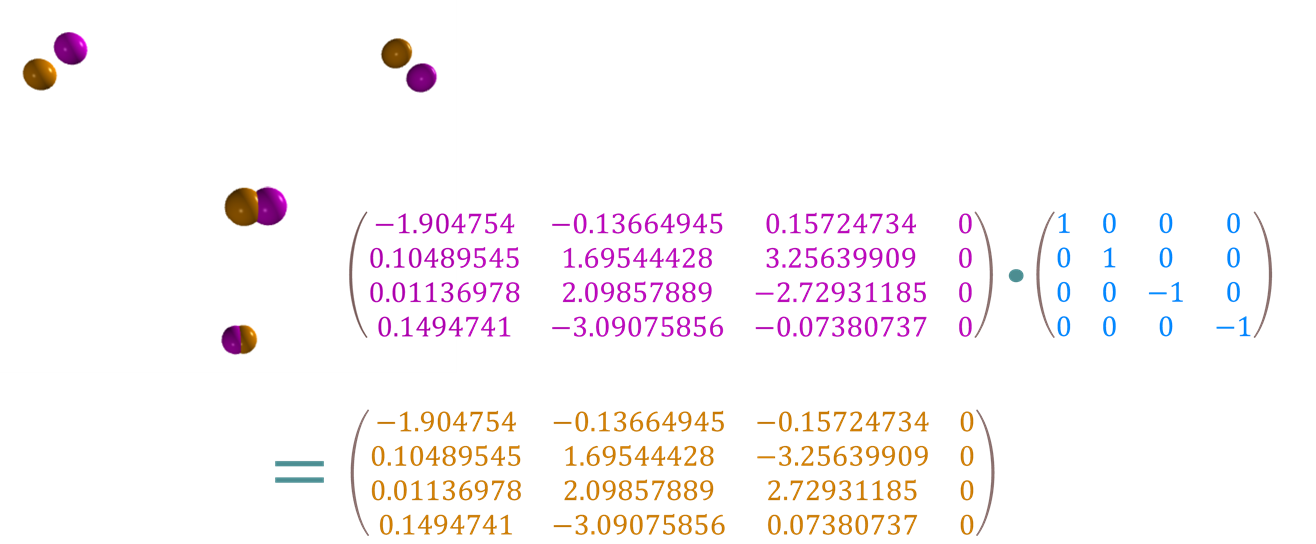

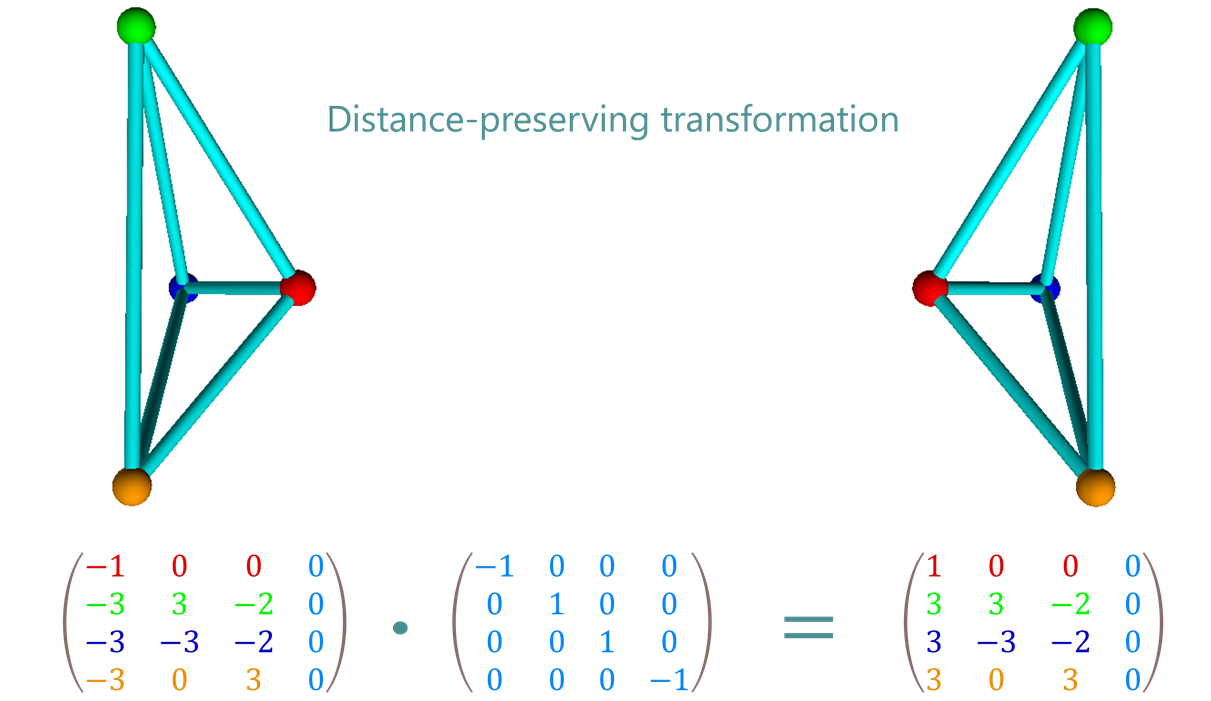

Distance-preserving Transformation in 4D Space
Intrinsic Plane

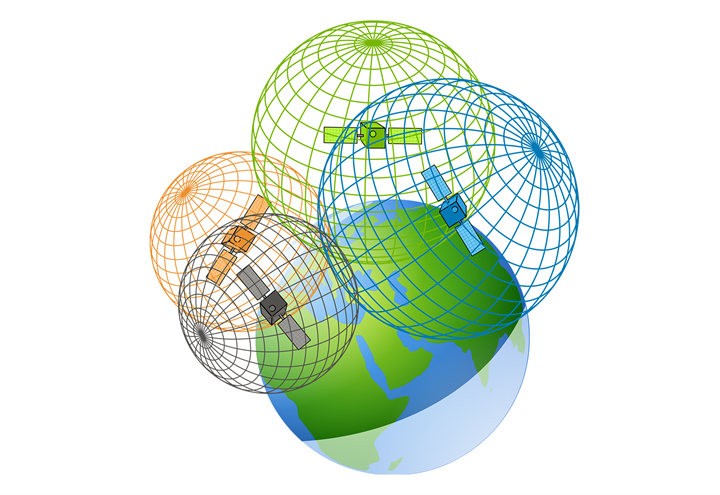

Trilateration

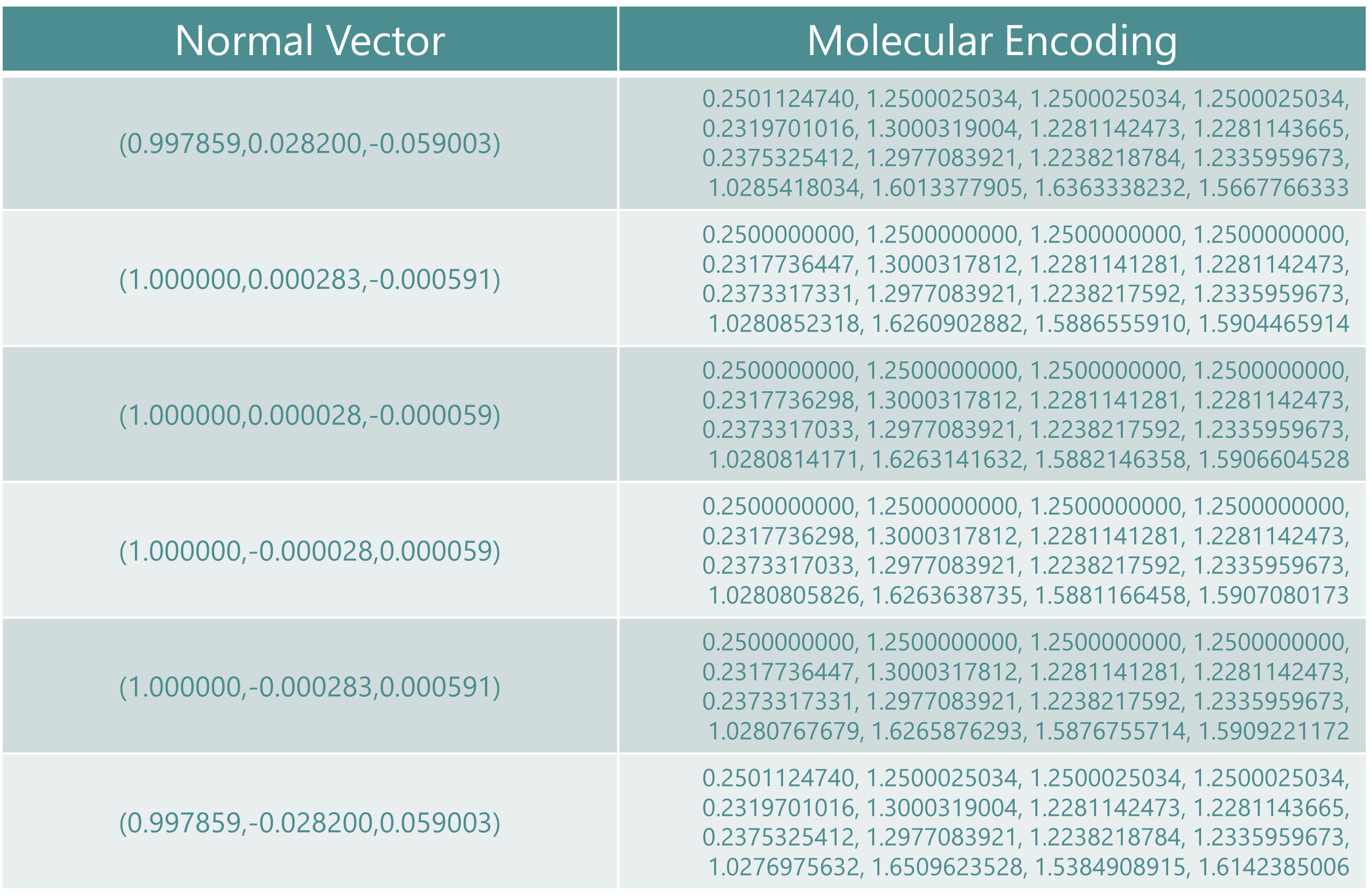

Intrinsic Plane and its Normal Vector
Trilateration with Four Spheres

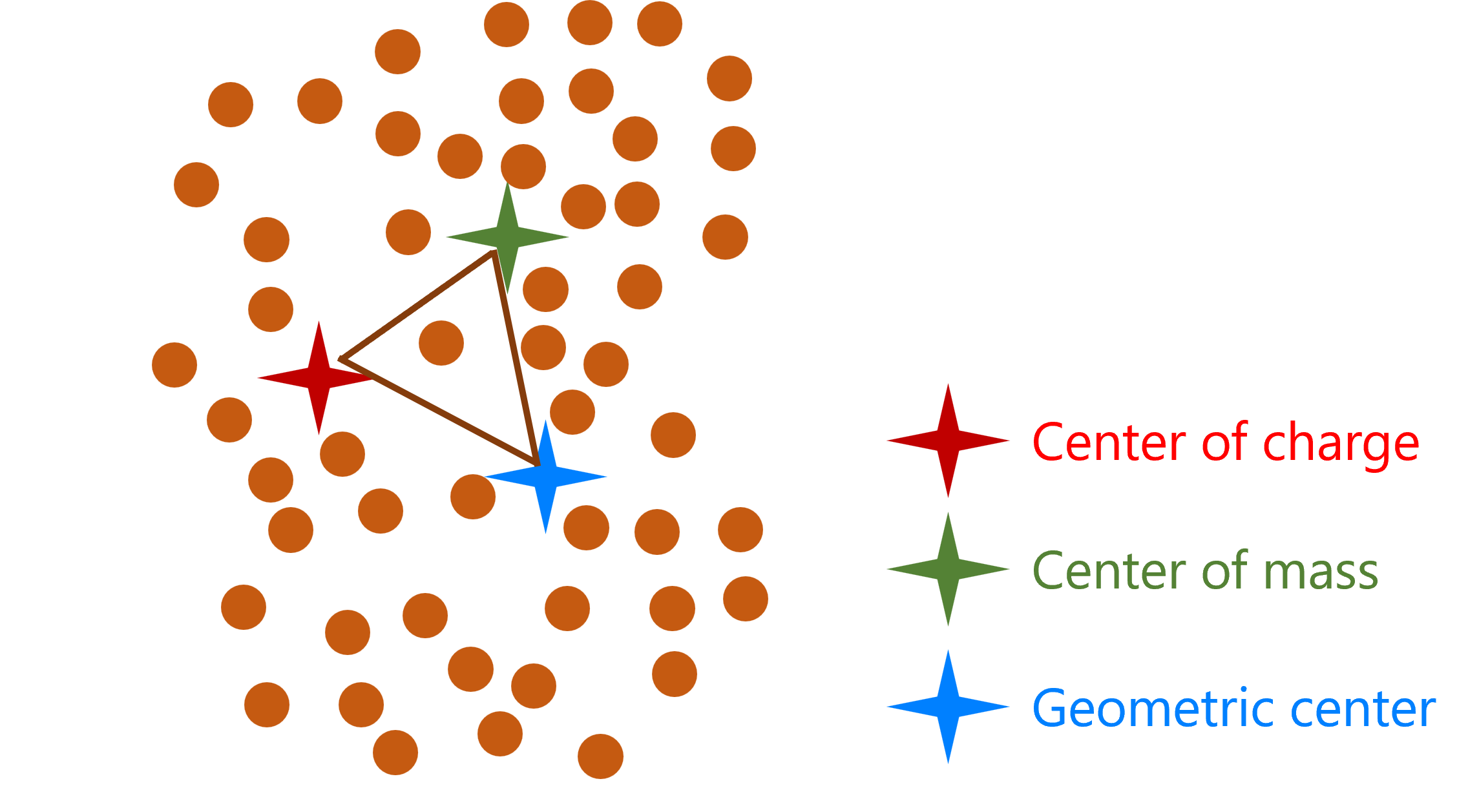

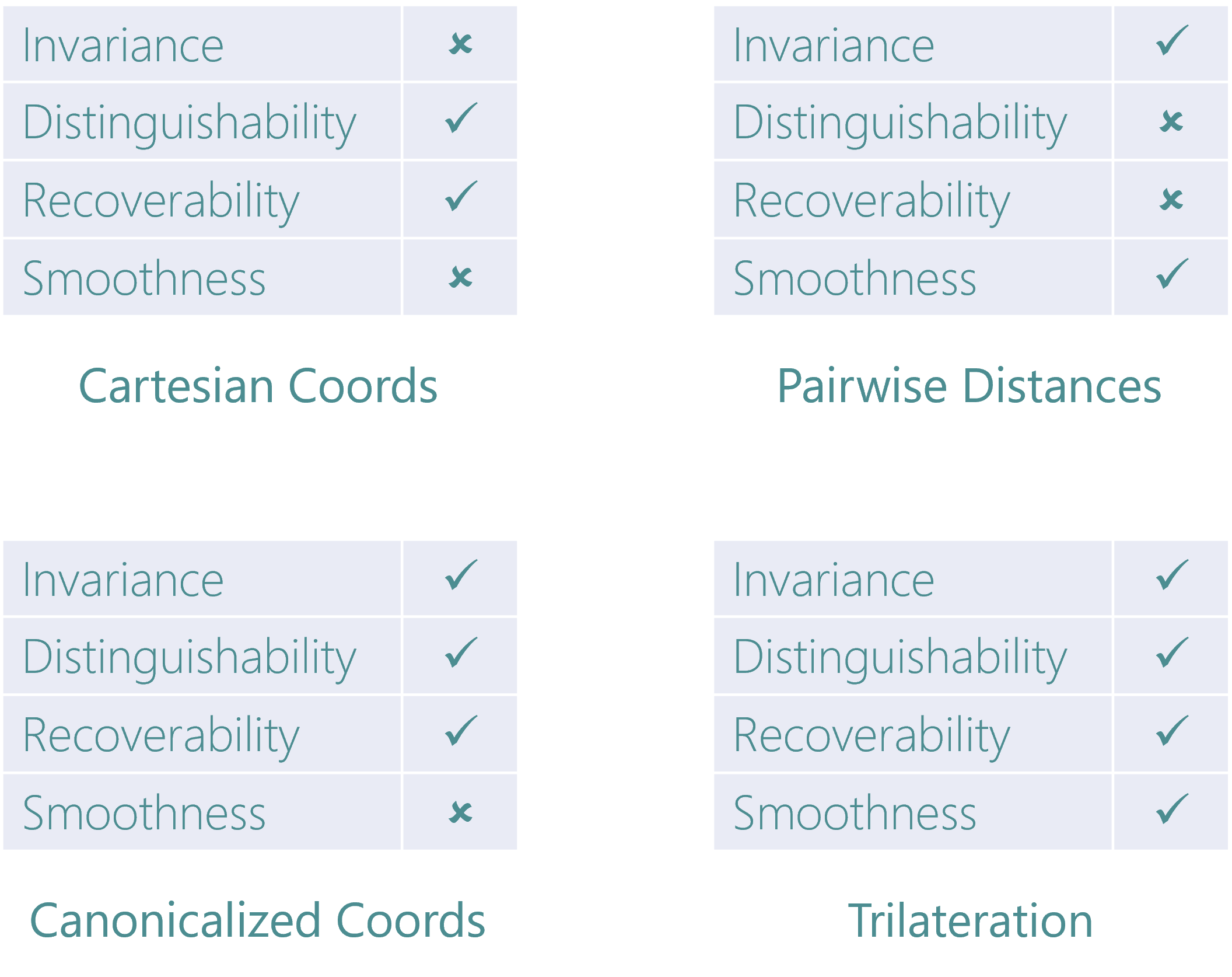

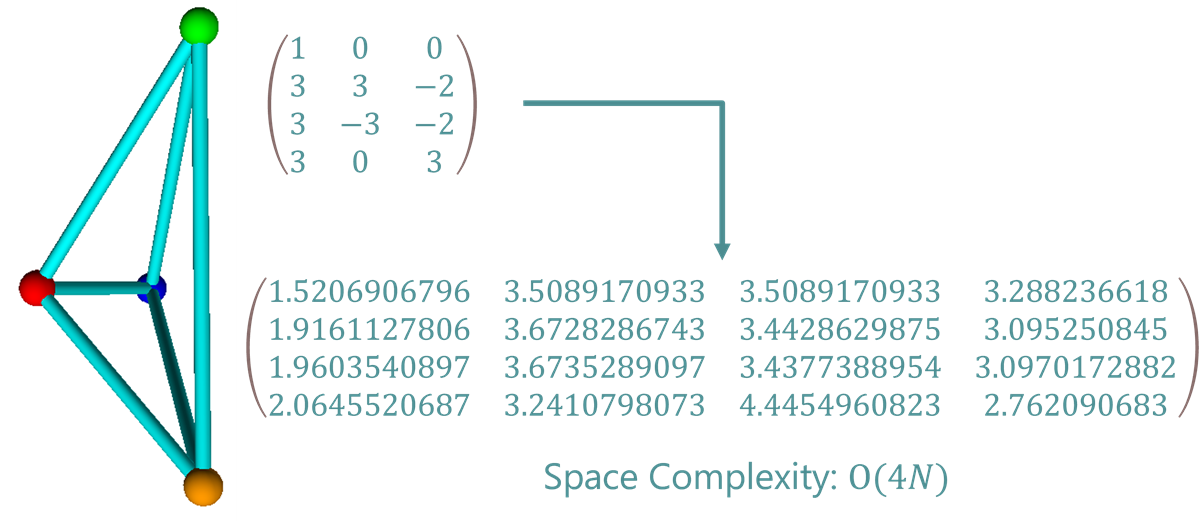

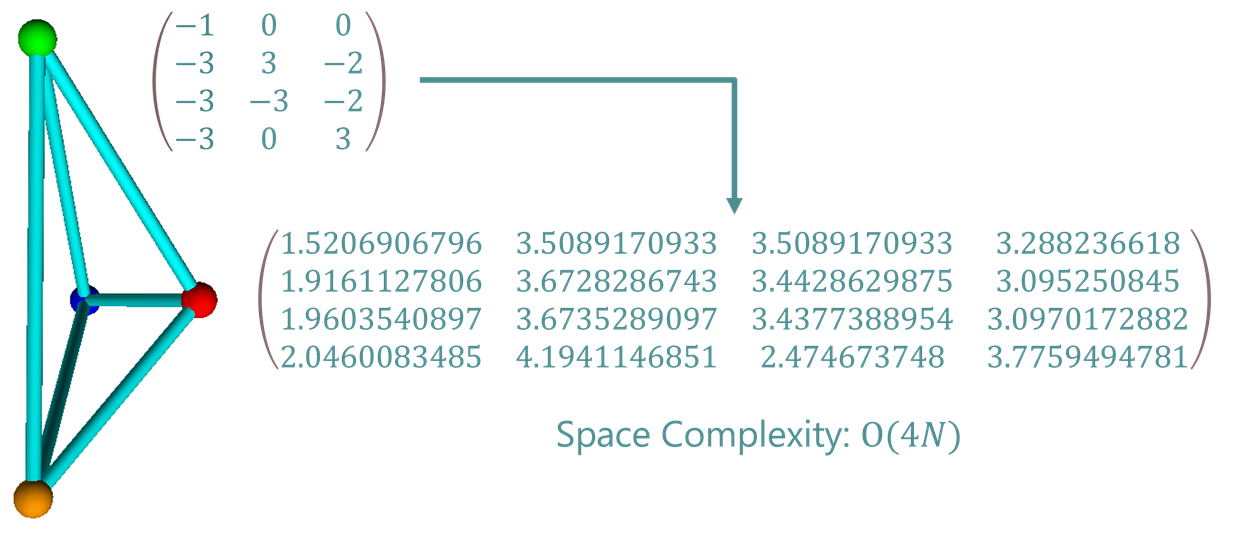

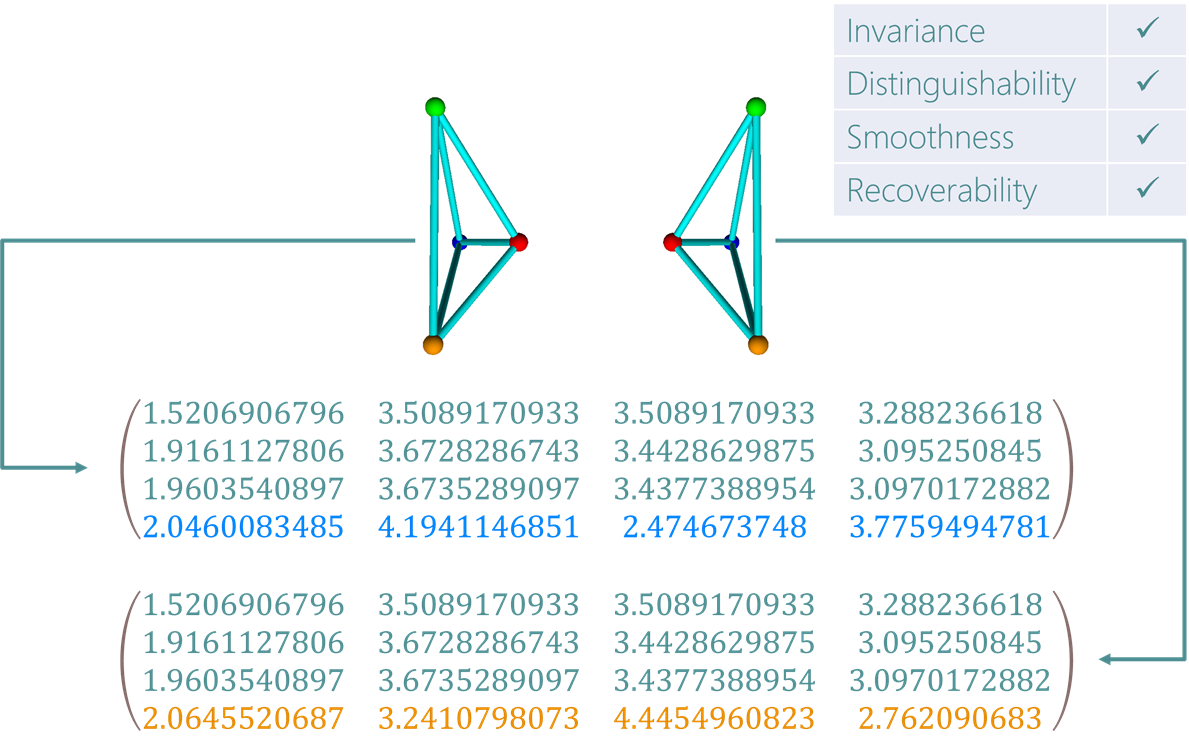

Encoding with Four Intrinsic Centers
Encoding with Four Intrinsic Centers
Encoding with Four Intrinsic Centers
Encoding with Four Intrinsic Centers
Are there other ways to encode a molecular structure?

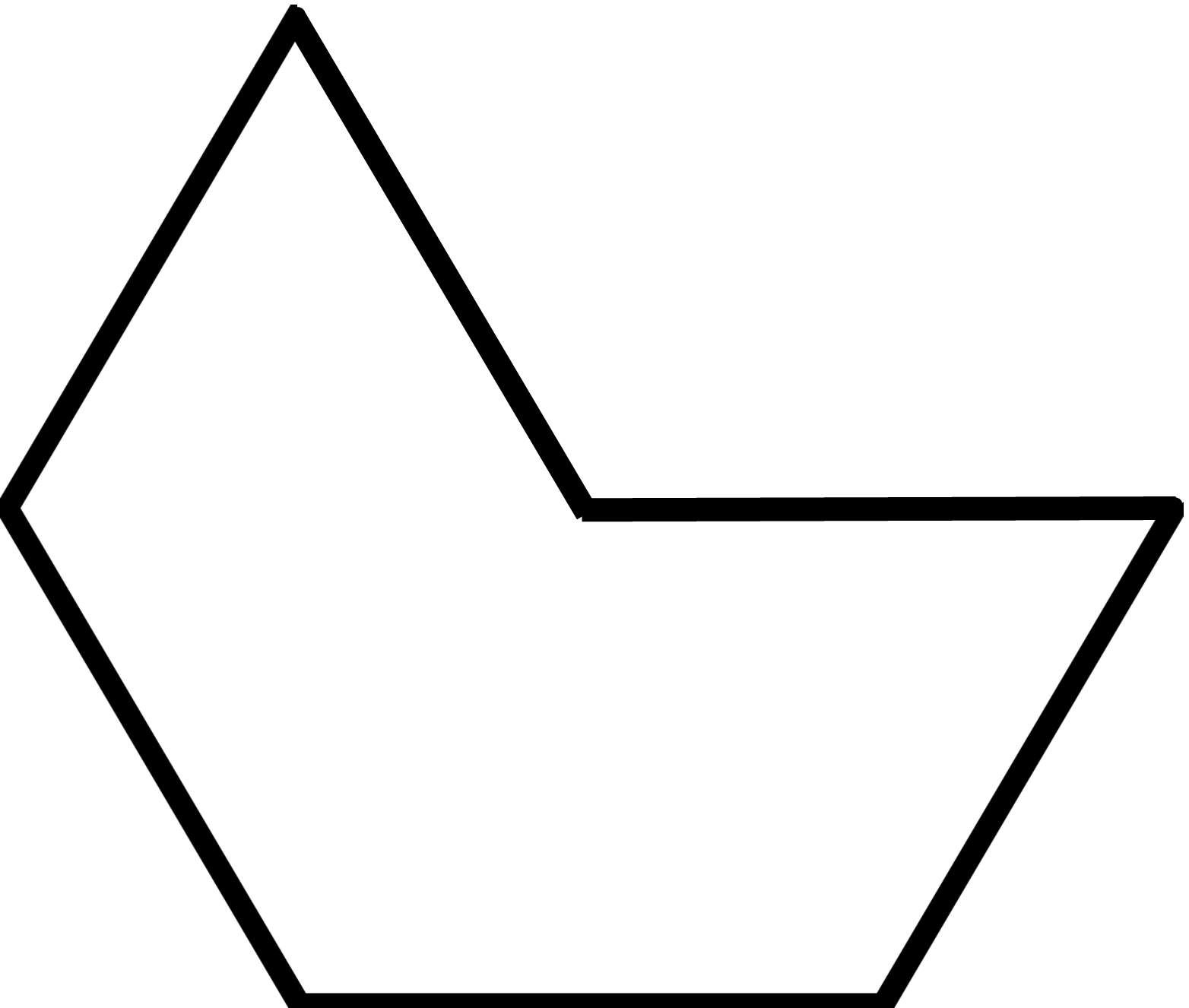

Epicycles

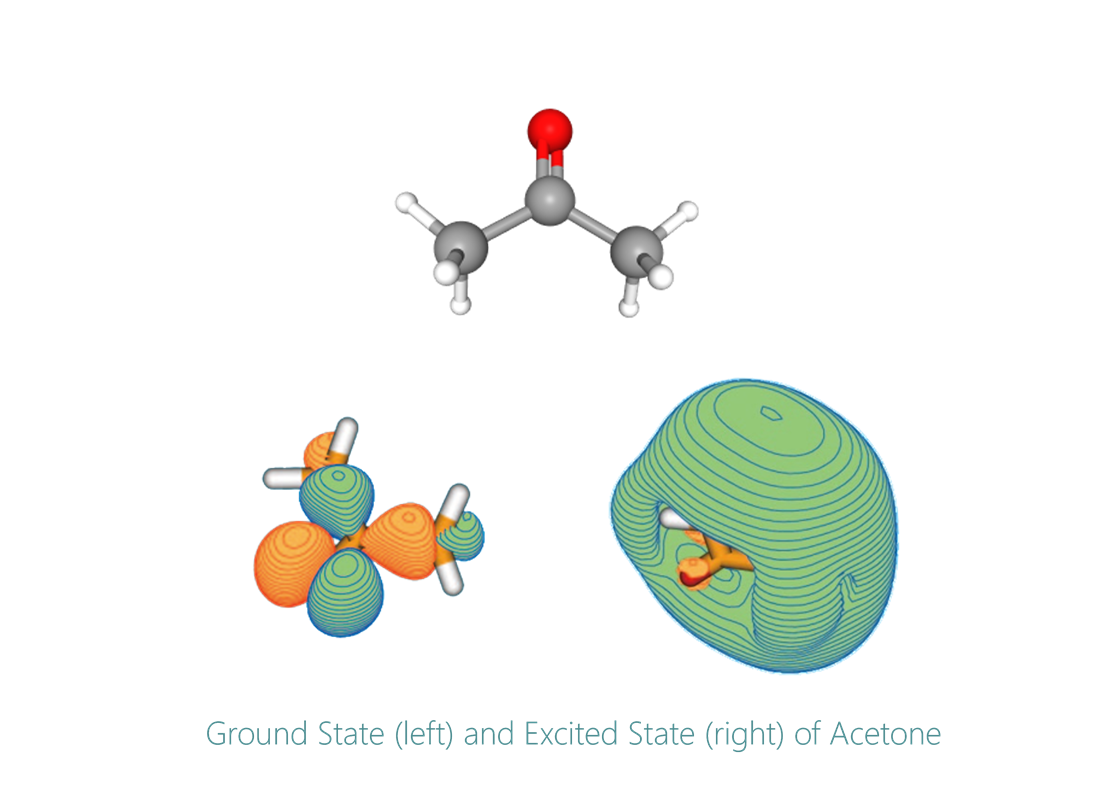

Electronic Structures
